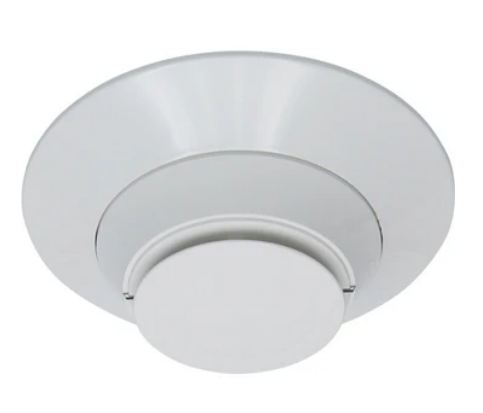

Mircom MIX-2351APA White Smoke Sensor

Mircom MIX-2351APA Intelligent Addressable White Smoke Sensor

Condition:
Brand New, Unopened Box

Product Overview:

The Mircom MIX-2351APA is a high-performance, intelligent addressable smoke sensor designed for commercial fire alarm systems. With advanced photoelectric technology, it provides reliable and accurate smoke detection while minimizing false alarms. This sensor is compatible with Mircom addressable control panels and offers quick response to potential fire hazards.

Key Features:

• Model: MIX-2351APA
• Color: White
• Technology: Advanced photoelectric smoke sensing for enhanced accuracy
• Addressable: Allows for easy integration and identification within the fire alarm system
• Low Profile Design: Aesthetic and compact, ideal for a wide range of environments
• LED Indicators: Provides clear status updates
• Easy Installation: Quick-connect terminals for efficient setup
• Compatibility: Works seamlessly with Mircom addressable panels

Specifications:

• Operating Voltage: 15-32 VDC
• Standby Current: 300 µA (average)
• Alarm Current: 6.5 mA (maximum)
• Sensitivity Range: 1.5% to 3.5% per foot
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Dimensions: 2.0" H x 6.2" Diameter
